JDpump

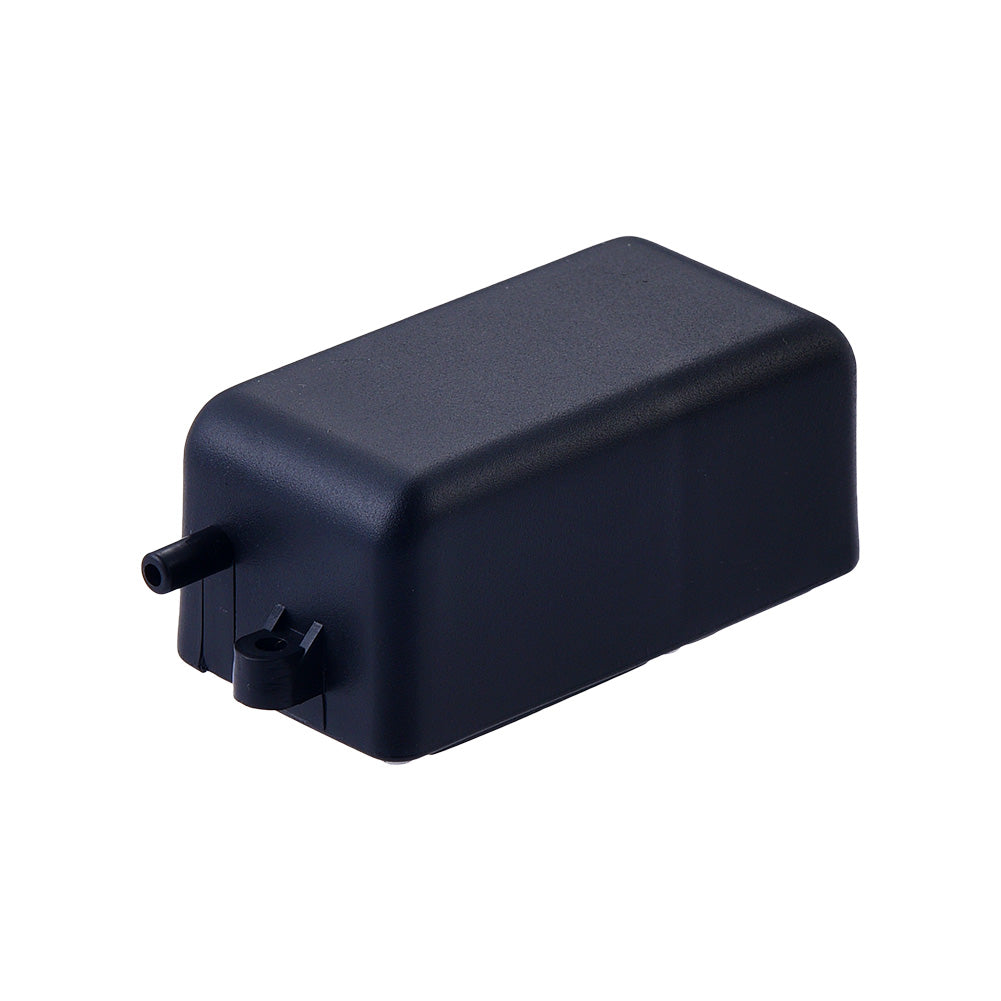

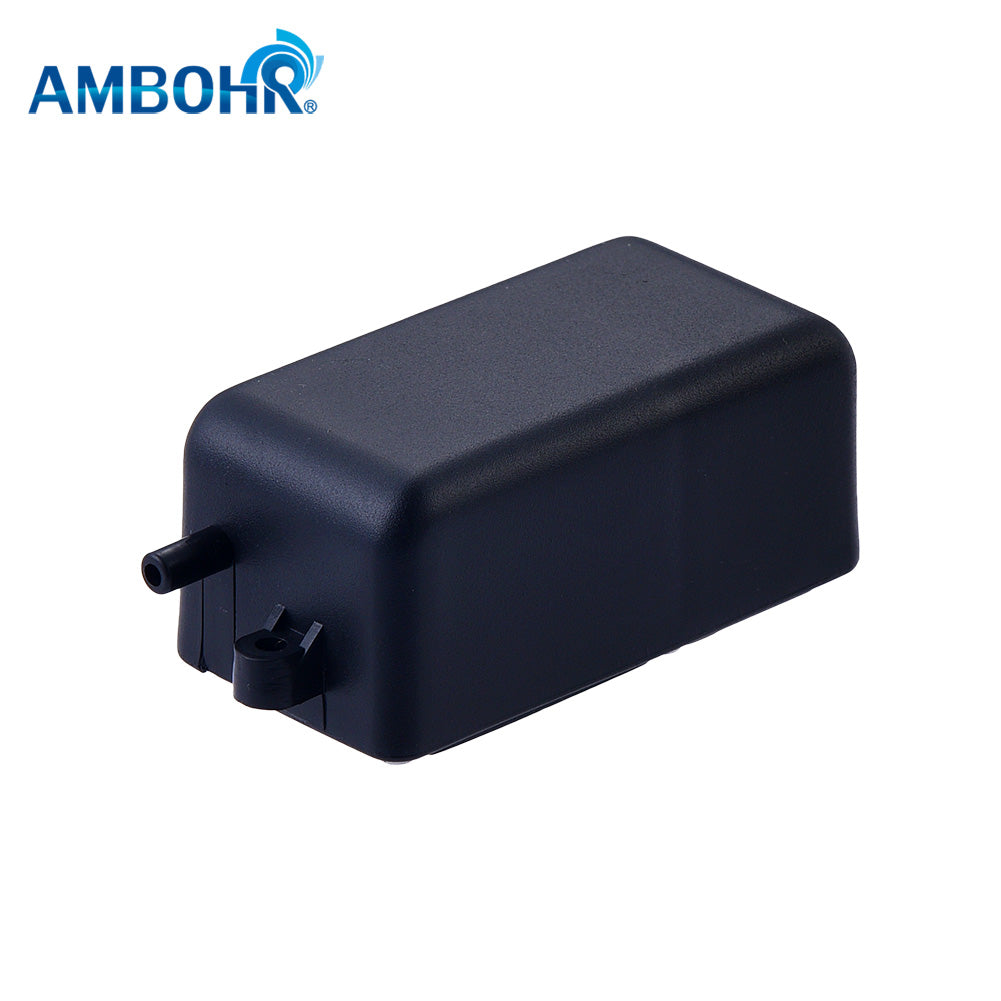

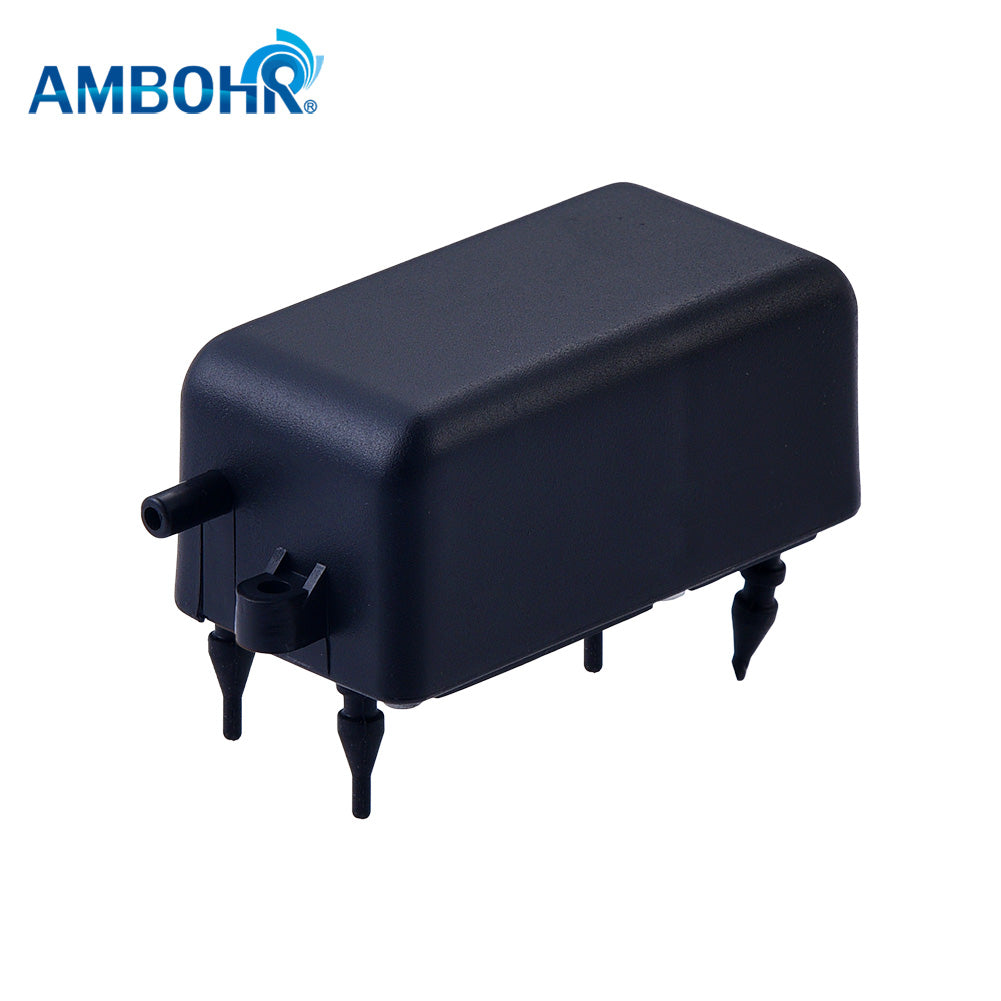

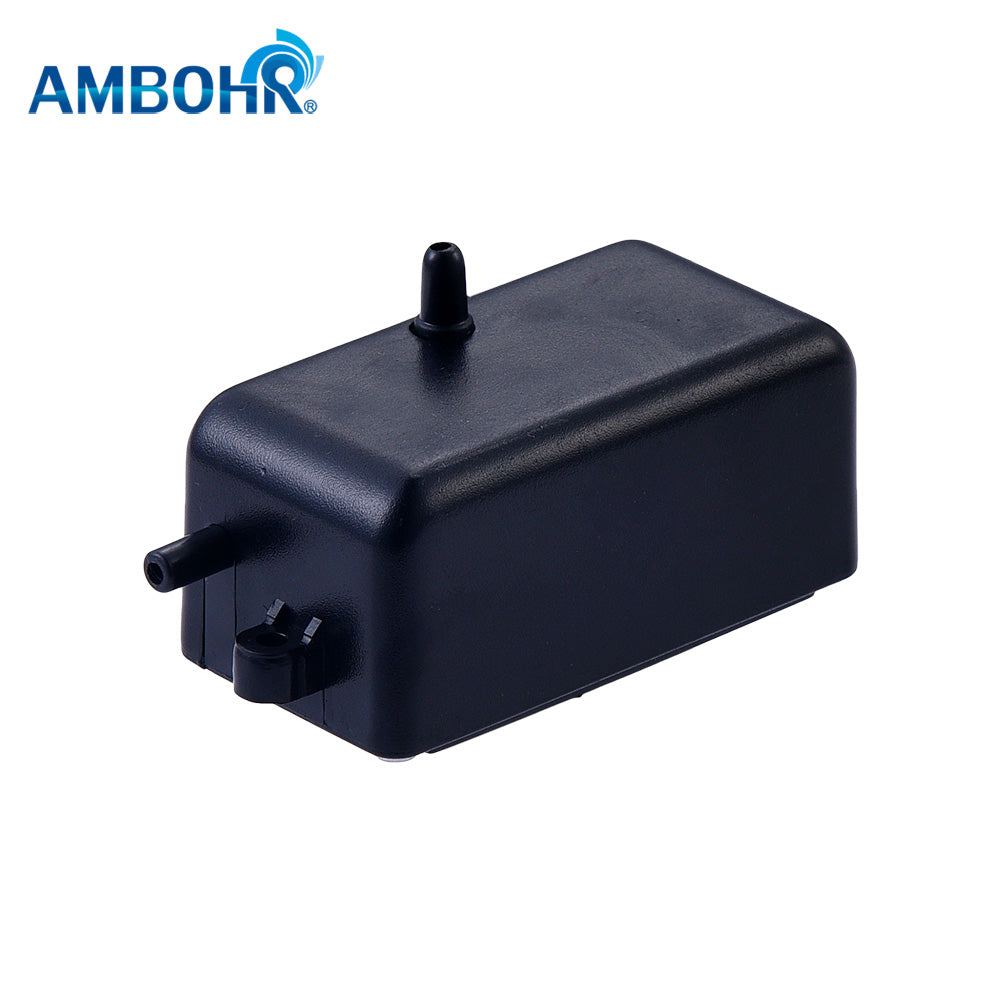

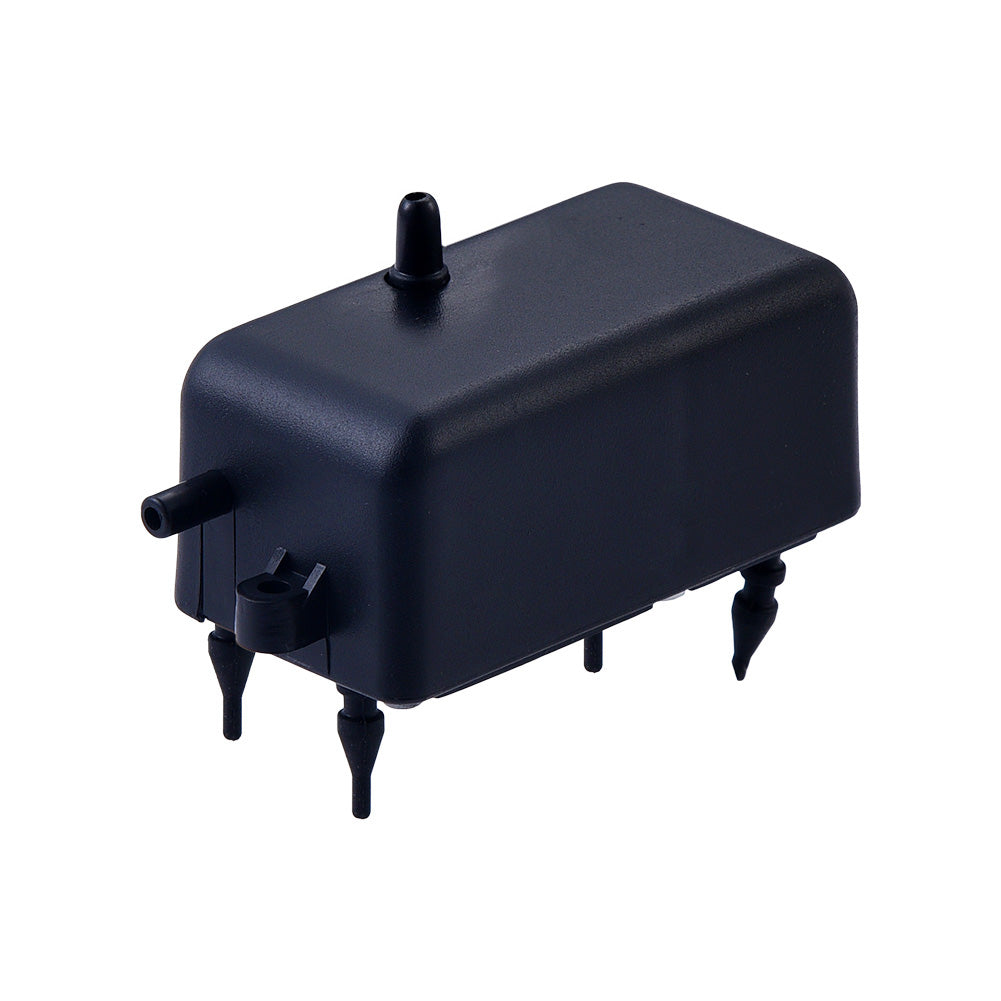

JDpump AP-M300 DC12V/DC24V Home Water Pressure Ultra Quiet Aquarium Air pump for Ozone Disinfection and Crafts

JDpump AP-M300 DC12V/DC24V Home Water Pressure Ultra Quiet Aquarium Air pump for Ozone Disinfection and Crafts

Regular price $6.50
Regular price Sale price $6.50
Sale Sold out
Tax included.
Model

Application:Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, temperature control, Washing and Cleaning

Pressure:Low Pressure

Voltage:AC110V/220V DC12V/24V

Customized support:OEM, ODM
Functions & Features.

Relying on advanced technology and unique design, this pump achieves the perfect integration of small volume and Good quality. The shell is made of safe and non-polluting plastic material. Its internal structure is simple, easy to install, and it can be connected to a variety of devices.

wear-resisting, no leakage, no blocking, wear-resisting, anti-corrosion hygiene, automatic: sanitary, explosion-proof, compact high-pressure volume, low noise, low power consumption, easy to operate, easy to carry, maintenance-free, 24 hours continuous operation.

High-Power & Durable Diaphragm
Although this product is small in size. But because it relies on advanced technology, its energy is very large. Internal parts are the best materials used, so it has the capability of over 10000 hours of continuous maintenance-free operation. Besides, it is suitable for various voltages, such as AC/DC 12V, AC/DC 24V, AC/DC 48V, 100~120V 50/60Hz, 200~2400V 50/60Hz.
The antioxidant and anti-corrosion agent was added to the rubber material to improve the anti-oxidation aging performance of the diaphragm and ensure the more stable performance of the air pump.
Specification & Packaging

Specifications:

Voltage (V)±10%
AC110V
AC220V
DC12V
DC24V
Frequency (Hz)
50/60
50/60
Current (mA)±15%
20
11
190
95
Power (W)±15%
2,2
2,4
2,3
2,3
Flow (L/min)
5
5
5
5
pressure(kPa)
15
15
15
15
Noise (dB)
36
36
36
36


Use
: Footbath, Hydroponics, Crafts, Ozone disinfection


High-Power & Durable Diaphragm
  1.   The connector is customizable. Choose different connectors according to different equipment. For example, considering that each country's outlets are different, our Air Pump can be modified according to different requirements.
  2. It is very easy to connect to any other control units. such as a socket, switch, relay, PLC, intelligent control, etc.
Dimension (L*W*H)                                Air Output                                                            3.6"*1.5"*1.3" (93*38*32mm)                               1-4.5L/min (1~4.5lpm)
